DVNT-455

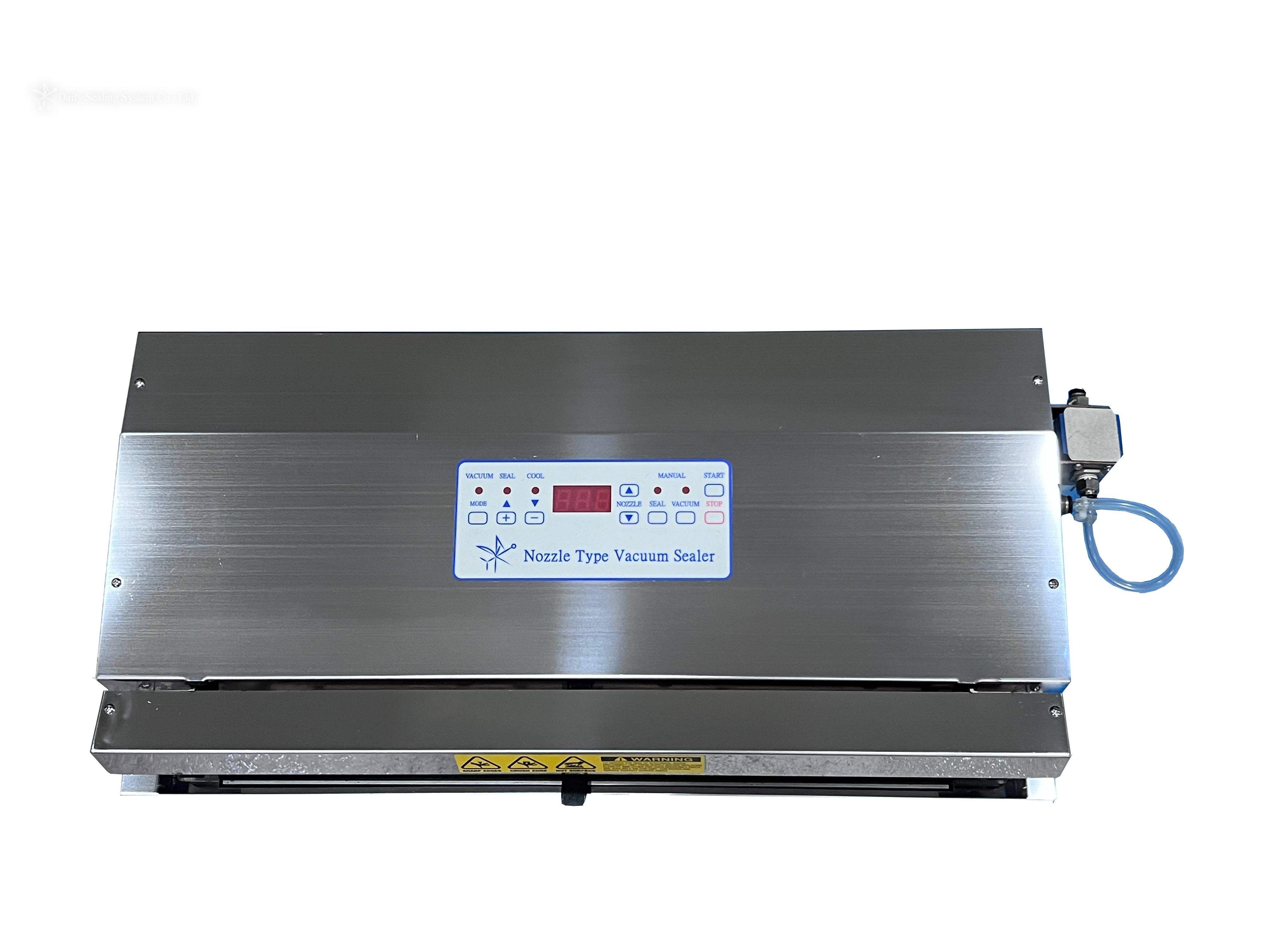

45CM NOZZLE TYPE VACUUM SEALER

Sealing length: 45cm.

Suitable for packing products: Electronic component.

  • Detail
  • Feature
  • Specification

45CM NOZZLE TYPE VACUUM SEALER :

• Made in Taiwan.

• Stainless steel outer casing, rustproof, solid and heavy-duty, health and hygiene to be used.

• Professional vacuum sealer to perform of high sealing quality, widely use for industry.

• Sealing operation:

   (1) Manual seal: by hand operation.

   (2) Pressure sensor switch control: if the air inside of bag is vacuumed out, the sealer will seal the bag automatically.

   (3) Setting vacuum time.

• Counting of PCB function: after vacuuming and sealing, the machine will count the operating number of times automatically. It can be clearly to know how many bags that were finished.

• Equipped water filter to prevent humidity into machine to destroy the machine parts inside.

• The machine is mini size, which can save space and move easily.

• Vacuum package to keep food fresh longer and keeps the precious articles from humidity.

• Available for: any kinds of vacuum sealer bag.

Model No. DVNT-455
Sealing type Impulse heating
Type
Voltage/Ampere 110V / 15.3A, 220V
Power 1690W(110V)
Vacuum capacity 27.0” hg
Max.sealing 460.0 x 5.0 mm
Vacuum time 0.0–99.0 sec. (adjustable)
Sealing time 0.0–6.0  sec. (adjustable)
Cooling time 0.0–10.0   sec. (adjustable)
Machine weight 15.60 kgs
Machine size 502 x 298 x 162 mm
