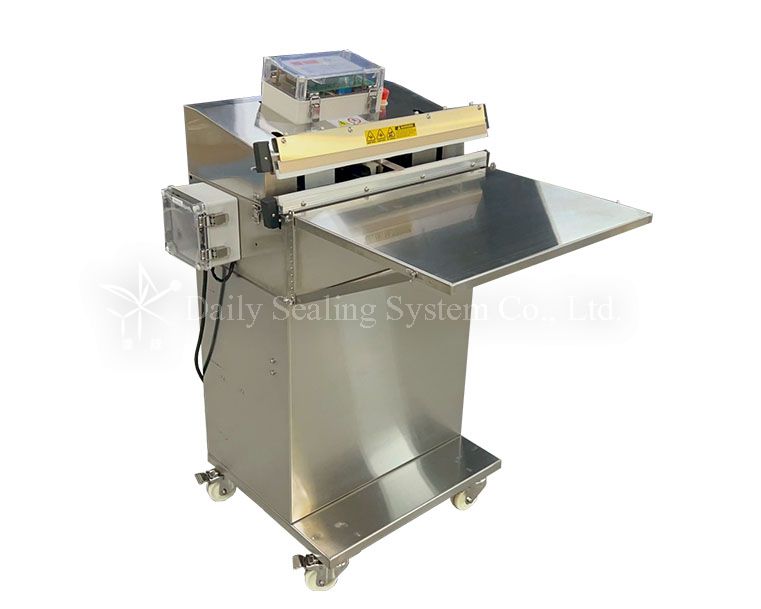

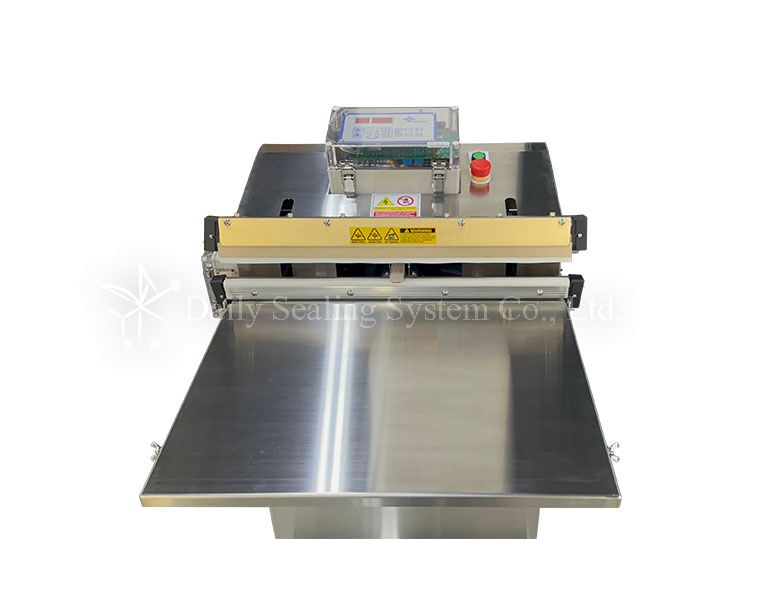

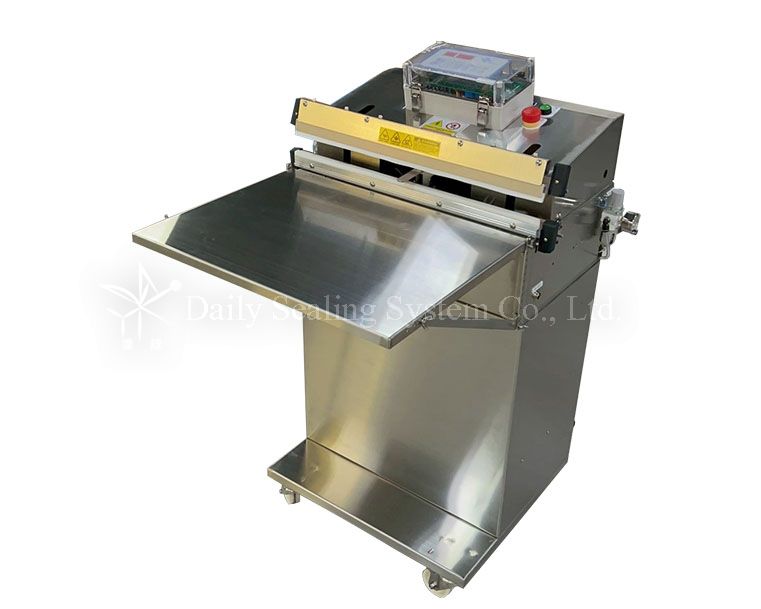

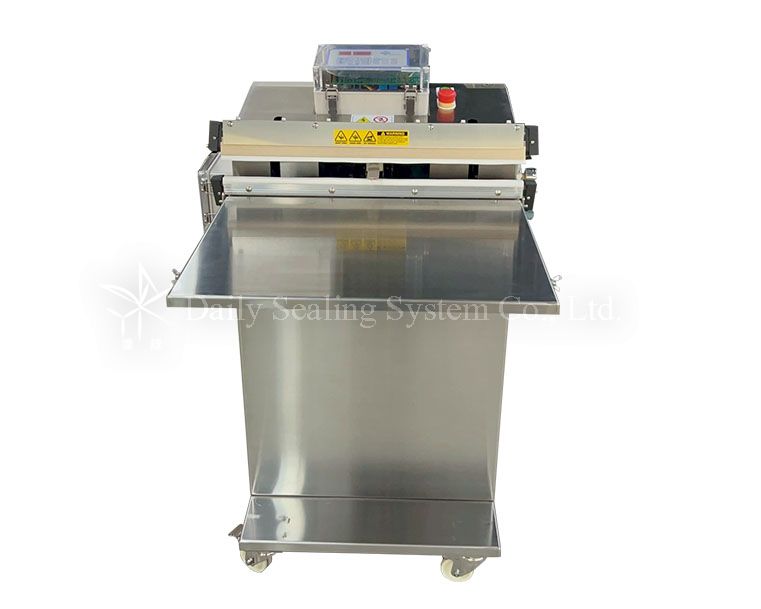

Pneumatic control nozzle type vacuum sealer(double sealing)

Sealing length: 60cm. double sealing

Available for: Vacuum Sealer Bag,Aluminum foil flat bag.

  • Detail
  • Feature

Pneumatic control nozzle type vacuum sealer(double sealing) Appearance Features:

● Made of stainless steel SUS 304, safe and hygienic.

● Equipped with a work plate for more convenient operation.



Pneumatic control nozzle type vacuum sealer(double sealing) Machine Features:

● Using a vacuum generator to convert positive air pressure into negative pressure helps avoid the risk of food damage caused by excessive vacuum pressure from traditional vacuum pumps.

● Upper and lower heating to improve work efficiency.

● The work plate includes a storage baffle design to secure the sealing position, delivering neat, stable, and high-quality seals.

● Customizable settings for vacuuming, sealing, and cooling times allow for automated and convenient operation.



Pneumatic control nozzle type vacuum sealer(double sealing) Precautions:

● Not suitable for packaging with excessive liquids.



Pneumatic control nozzle type vacuum sealer(double sealing) Maintenance Method:

● Consumables such as heating elements, teflon tape, silicone foam require regular inspection and replacement.

●Replace the heating elements if it is broken.

●Replace the teflon tape if it is burnt or damaged.

●If sealing performance is poor, check and replace silicone or foam as necessary.



Pneumatic control nozzle type vacuum sealer(double sealing) Suitable for:

● Food processing industry: Tofu, soft food

● Electronic components, hardware parts, metal fittings.



Other Nozzle Type Vacuum Sealer options:

DS-VV455T Pneumatic control nozzle type vacuum sealer- Desktop

DS-VV755T Pneumatic control nozzle type vacuum sealer- Desktop



Pneumatic control nozzle type vacuum sealer(double sealing) Suitable material of bag:

Vacuum Sealer Bag,Aluminum foil flat bag.



FAQs

Q: Why can’t regular plastic bags be used?

A: Due to the material density, regular plastic bags are usually made of PE material. Even after vacuuming and sealing, air can seep back into the bag. After leaving it for some time, the vacuum effect will disappear.



Q: What types of bags are suitable for vacuum sealers?

A: The most common materials for vacuum packaging bags are nylon (NY) bags and aluminum foil bags. Both materials effectively prevent air from re-entering the vacuum-sealed bag, maintaining the vacuum state inside.



Q: Can the power plug be modified?

A: Modifications to the power plug are considered a custom request. Please contact us.


Specification
Model No. DS-VT605T
Sealing type Impulse Heat
Type
Voltage/Ampere 220V / Single Phase
Power
Vacuum capacity
Max.sealing 600*10mm(double sealing)
Vacuum time 0.0–99.0 sec.
Sealing time 0.0–2.0 sec.
Cooling time 0.0–10.0 sec.
Machine weight 86 kg
Machine size 760*820*900mm
Vacuum flow
Pump capacity
Pump type
Chamber size
Sealing width
Sealing and conveyor speed
Bag total thickness
Bag size
Sealing Temperate
Conveyor width
Conveyor height adjusting range
Conveyor loading weight
Machine size
Packing
Warm up time
Heating
Temperature
Adjusting height of working table
Width of ribbon
Size of letter
Number of letters
Printing area
Size of metal bar
Quantity of knives
Length of knives
Max. consumption electric power
Oscillation frequency
Max. welding
Film position
Size of heating board
Max. size of film
Inner core
Packing size
Working table size 610x400x20mm
PS2
PS3
Certification
Machine material SUS 304
Suitable material of bag Vacuum Sealer Bag,Aluminum foil flat bag.
Suitable for packing products Tofu, soft food
Spare parts
Warranty 1-year guarantee
Origin Taiwan
