DS-VV755T

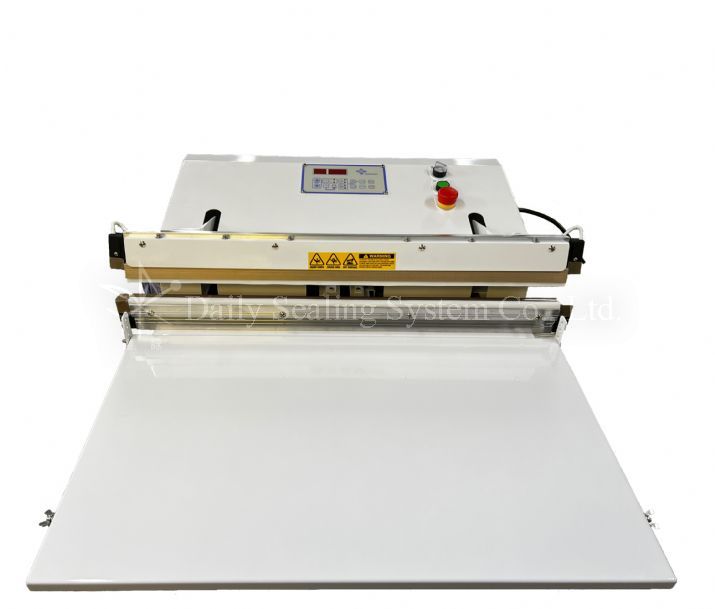

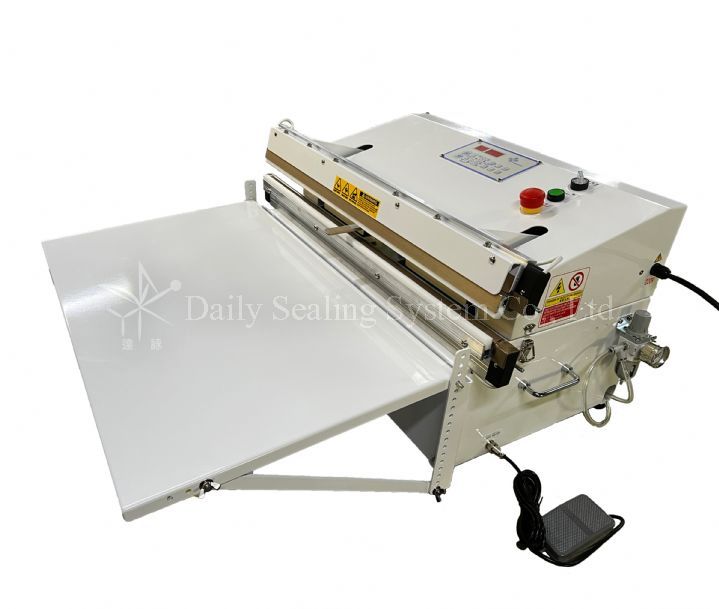

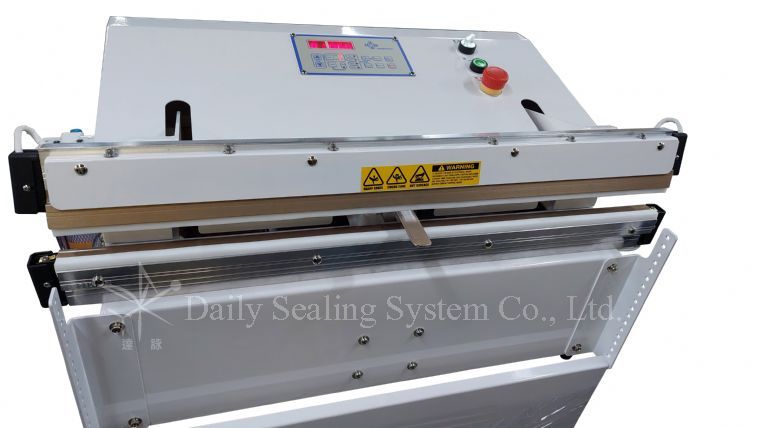

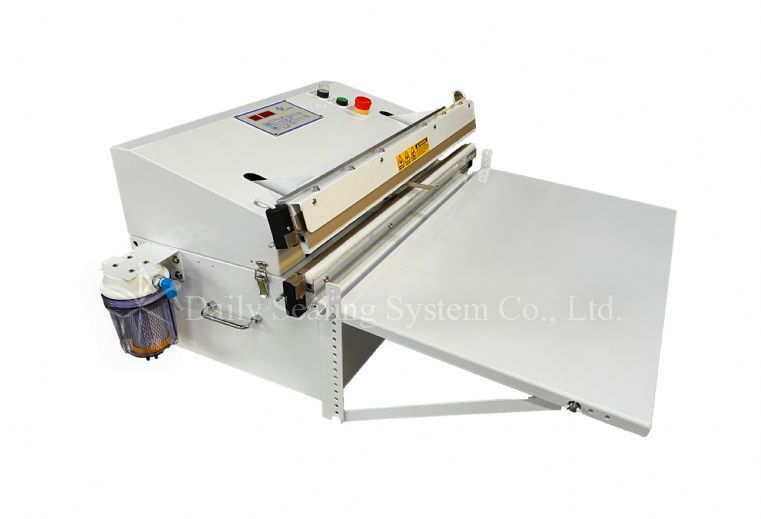

Pneumatic control nozzle type vacuum sealer- Desktop

Sealing length: 75cm.

Tabletop.

Need to connect air compressor.

More stable Suitable for packing products: Electronic component.

  • Detail
  • Feature
  • Specification

Pneumatic control nozzle type vacuum sealer- Desktop :

 Made of metal plate coating

 Air operatedCustomers need to prepare air compressor 6-7 KG /cm²。

 Could adjust vacuum, seal and cool time and set 20 memories of time.

 No length limit of the vacuum bags.

 Suitable for packing dry and solid goods, not suitable for liquid or powder package.

 Suitable bags: nylon vacuum bags and aluminum foil bags.

 The vacuum sealer of over 80cm sealing line also can be made.

 Options:

1. Can be installed GAS flushing function. (Customers need to prepare the gas.

2. Stainless steel housing for dust-free room and humid environment.

Model No. DS-VV455T DS-VV4510T DS-VV605T DS-VV6010T DS-VV755T
Voltage 110V / 220V 110V / 220V 110V / 220V 110V / 220V 220V
Max. sealing 450 x 5mm 450 x 10mm 600 x 5mm 600 x 10mm 750 x 5mm
Vacuum time 0 - 99 sec. 0 - 99 sec. 0 - 99 sec. 0 - 99 sec. 0 - 99 sec.
Seal time 0 - 3 sec. 0 - 3 sec. 0 - 3 sec. 0 - 3 sec. 0 - 3 sec.
Cool time 0 -10 sec. 0 -10 sec. 0 -10 sec. 0 -10 sec. 0 -10 sec.
Workingtable size 450*450mm 450*450mm 600*600mm 600*600mm 750*450mm
Machine Weight 40 kg 42 kg 45 kg 48 kg 68 kg
Machine size 475*820*320mm 475*820*320mm 665*970*320mm 665*970*320mm 765*970*330mm
Model No.
Sealing type
Type
Voltage/Ampere 220V
Power
Vacuum capacity
Max.sealing 750.0 x 5 mm
Vacuum time 0–99 sec
Sealing time 0–2 sec.
Cooling time 0–10 sec
Machine weight 68 kgs
Machine size 765x 970 x 330 mm
Vacuum flow
Pump capacity
Pump type
Chamber size
Sealing width
Sealing and conveyor speed
Bag total thickness
Bag size
Sealing Temperate
Conveyor width
Conveyor height adjusting range
Conveyor loading weight
Machine size
Packing
Warm up time
Heating
Temperature
Adjusting height of working table
Sealing Temperate
Size of letter
Number of letters
Printing area
Size of metal bar
Quantity of knives
Length of knives
Max. consumption electric power
Oscillation frequency
Max. welding
Width of ribbon
Size of heating board
Max. size of film
Inner core
Packing size
Working table size 750 x 450 mm
PS2
PS3
Certification
Machine material
Suitable material of bag
Suitable for packing products
Spare parts
Warranty
Origin
