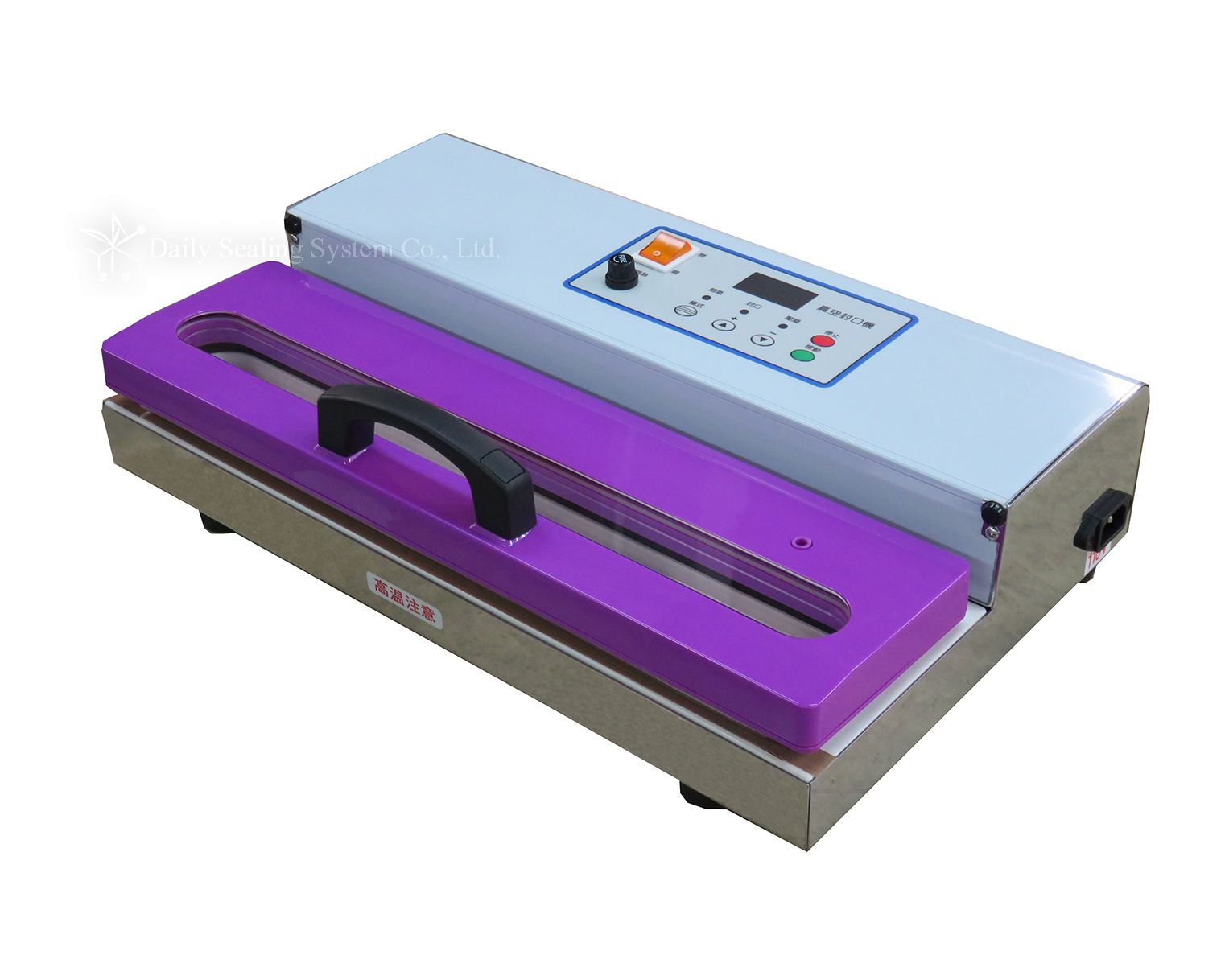

DVT-405C
Non-nozzle Vacuum Sealing Machine

Sealing length: 40cm.

Can control vacuum and seal time.

Suitable for packing products: tea leaves, soap, meat, nuts, electronic component etc.

  • Detail
  • Feature
  • Video

Non-nozzle Vacuum Sealing Machine:



• Made in Taiwan.



• Equipped with oil-less pump inside.



• Made in stainless steel, keeps hygiene and safety.



• Sealing operation:

  (1) Pressure sensor switch control: if the air inside of bag is vacuumed out, the sealer will seal the bagautomatically.

  (2) Setting vacuum time.



• Equipped with counting device: after vacuuming and sealing, the machine will count the operating number automatically. It can be clearly to know how many bags that were finished.



• Some bags can be vacuumed at same time, depends on bags width.



• Mini machine, easy to use and move.



• Vacuum package to keep food fresh longer and keeps the precious articles from humidity.



• Available for: aluminum foil gusset bag, Nylon gusset vacuum bags and vacuum embossed bag only.



• Suitable for dry and solid goods only.



• Option: 200mm commercial vacuum sealer


Specification
Model No. DVT-405C
Sealing type Impulse Heat
Type
Voltage/Ampere 110V / 6.7A, 220V / 3.5A
Power 740W(110V),770W(220V)
Vacuum capacity 26.0” hg
Max.sealing 400.0 x 5.0 mm
Vacuum time 0.0–99.0 sec. (adjustable)
Sealing time 0.0–9.0  sec. (adjustable)
Cooling time 0.0–9.0   sec. (adjustable)
Machine weight 10.20 kgs
Machine size 500 x 312 x 158 mm
Vacuum flow
Pump capacity
Pump type
Chamber size
Sealing width
Sealing and conveyor speed
Bag total thickness
Bag size
Sealing Temperate
Conveyor width
Conveyor height adjusting range
Conveyor loading weight
Machine size
Packing
Warm up time
Heating
Temperature
Adjusting height of working table
Width of ribbon
Size of letter
Number of letters
Printing area
Size of metal bar
Quantity of knives
Length of knives
Max. consumption electric power
Oscillation frequency
Max. welding
Film position
Size of heating board
Max. size of film
Inner core
Packing size
Working table size
PS2
PS3
Certification
Machine material
Suitable material of bag
Suitable for packing products
Spare parts
Warranty
Origin

Non-nozzle Vacuum Sealing Machine:
