DS-900F
90cm Foot type impulse sealer

•Sealing length: 90cm.

•Suitable for PP, PE, PVC, NY etc. material bags.

•Timer control

  • Detail
  • Feature
  • Video

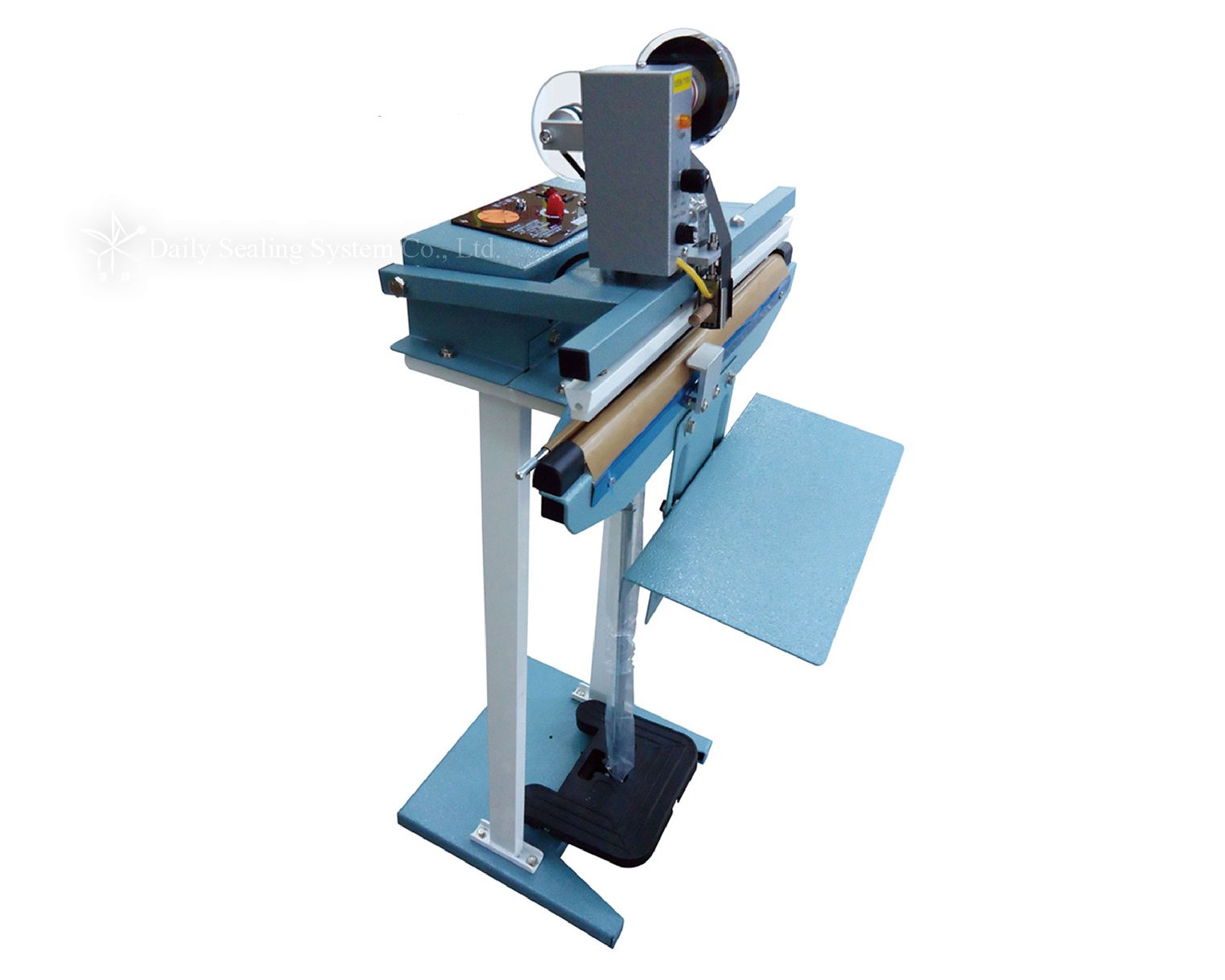

Foot type impulse sealer:

• No preheating required.

• Available with PE, PP, PVC, OPP, POF…plastic bag.

•  Sealing width could be 2.7mm, 5mm or 10mm

•  Additional accessories:

    (1) Can add an electric magnet or pneumatic eqipment for pedal switch controled. labor-saving.

    (2) Date coder.

•  For other lengths sealing machine, please contact us.





Item No.

DS-300F

DS-450F

DS-600F

Voltage

100V, 110V, 120V, 220V, 240V

Max. sealing

300x2.7mm or
300x5mm

450x2.7mm or
450x5mm

600x2.7mm or
600x5mm

Machine weight

16 kgs

18kgs

21kgs

Machine size

380x340x880mm

530x340x880mm

680x340x880mm



Item No.

DS-750F

DS-900F

Voltage

100V, 110V, 120V, 220V, 240V

Max. sealing

750x2.7mm or
750x5mm

900x2.7mm or
900x5mm

Machine weight

22kgs

25kgs

Machine size

830x340x880mm

980x340x880mm


Specification
Model No. DS-900F
Sealing type Impulse Heat
Type
Voltage/Ampere  100V,110V,120V,220V,240V
Power
Vacuum capacity
Max.sealing Max:900.0 x 2.7 mm or 900.0 x 5.0 mm
Vacuum time
Sealing time
Cooling time
Machine weight 25.00 kgs
Machine size 980 x 340 x 880 mm
Vacuum flow
Pump capacity
Pump type
Chamber size
Sealing width
Sealing and conveyor speed
Bag total thickness
Bag size
Sealing Temperate
Conveyor width
Conveyor height adjusting range
Conveyor loading weight
Machine size
Packing
Warm up time
Heating
Temperature
Adjusting height of working table
Width of ribbon
Size of letter
Number of letters
Printing area
Size of metal bar
Quantity of knives
Length of knives
Max. consumption electric power
Oscillation frequency
Max. welding
Film position
Size of heating board
Max. size of film
Inner core
Packing size
Working table size
PS2
PS3
Certification
Machine material
Suitable material of bag
Suitable for packing products
Spare parts
Warranty
Origin

90cm Foot type impulse sealer:
