DS-400H

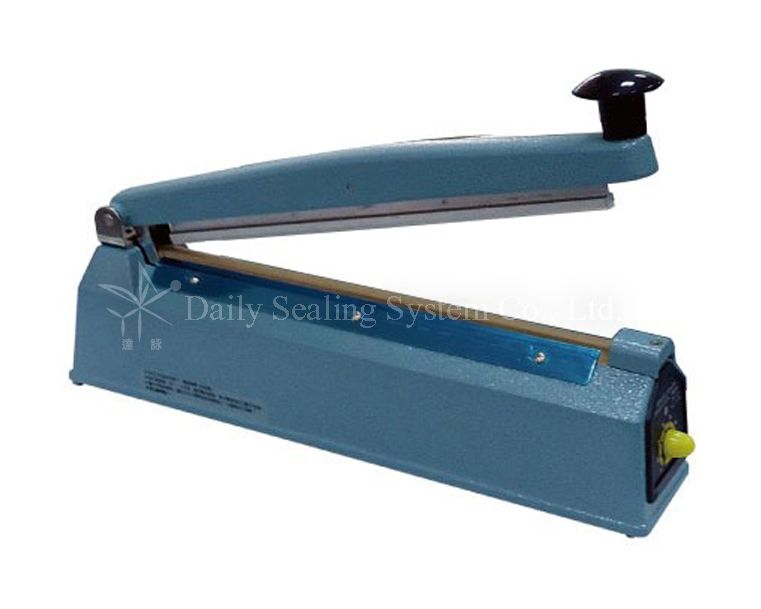

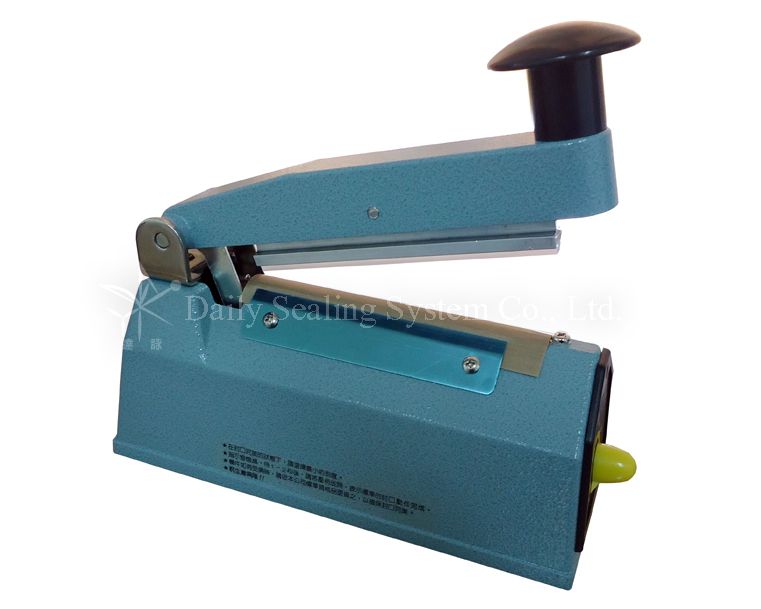

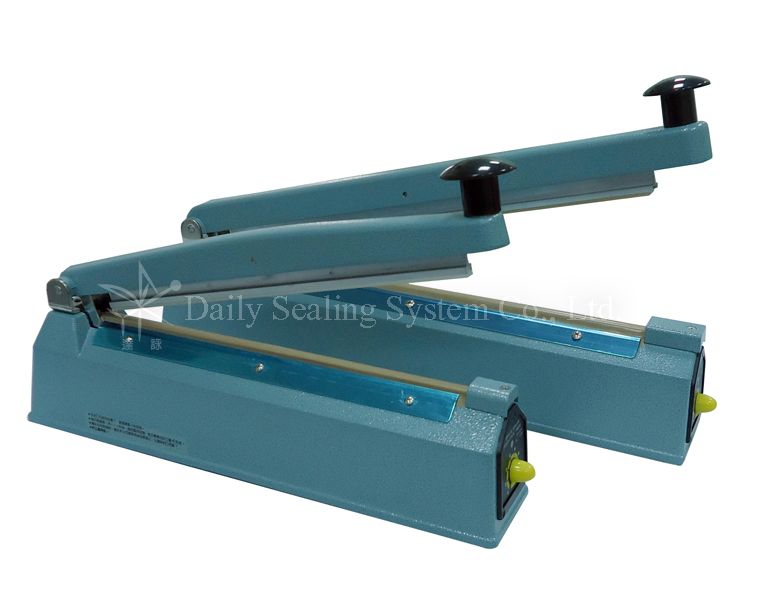

40cm Hand type impulse sealer

Sealing length: 40cm.

Suitable material for kinds of plastic bags (PE, PP, OPP, PVC, OPF, NY), non-woven bag, thin alum. bags.

  • Detail
  • Feature
  • Video

40cm Hand type impulse sealer:

• Machine: aluminum alloy with powder coating.

• Suitable material of bag: aluminum, tinfoil, sterilization bag, vacuum nylon bag.


Specification
Model No. DS-400H
Sealing type Impulse Heat
Type
Voltage/Ampere 110V, 220V
Power
Vacuum capacity
Max.sealing Max:400.0 x 2.0 mm
Vacuum time
Sealing time
Cooling time
Machine weight 4.80 kgs
Machine size 530 x 90 x 270 mm
Vacuum flow
Pump capacity
Pump type
Chamber size
Sealing width 2mm
Sealing and conveyor speed
Bag total thickness
Bag size
Sealing Temperate
Conveyor width
Conveyor height adjusting range
Conveyor loading weight
Machine size
Packing
Warm up time
Heating
Temperature
Adjusting height of working table
Width of ribbon
Size of letter
Number of letters
Printing area
Size of metal bar
Quantity of knives
Length of knives
Max. consumption electric power
Oscillation frequency
Max. welding
Film position
Size of heating board
Max. size of film
Inner core
Packing size
Working table size
PS2
PS3
Certification
Machine material
Suitable material of bag
Suitable for packing products
Spare parts
Warranty
Origin

40cm Hand type impulse sealer:



You May Also Like
News
Hand Type Sealer
2022/12/15
Hand Type Sealer
Hand type sealer is the easiest sealer for users. Hand type sealer is small size that can save space. Portable sealer is suitable for large and heavy package.   ※ Hand type sealer : ➤For different operating type : - Hand type sealer: table type. Save space. Press the hand lever and hand type sealer start to seal. Easy operating. - Hand press sealer: table type. Pull the lever down to start sealing. It can save effort. 25cm sealing line is suitable for tea bags or coffee bag packing. - Portable sealer is suitable for wide working space. Portable sealer is also suitable for large and heavy articles, such us pallet package.   ➤For different material of package bags : - Impulse hand type sealer/ portable sealer: It is suitable for PE, PP, PET material, and aluminum bags and medical bags. - Constant heat hand type sealer / portable sealer: It is suitable for aluminum bags, vacuum bags and medical bags.   More details: Click here
MORE
What is Impulse Sealer Heating Element?
2024/11/5
What is Impulse Sealer Heating Element?
  What is Impulse Sealer Heating Element?   A Heating Element is a key component in impulse sealers, which are devices used to seal plastic bags and other thermoplastic materials. Here are the main points about this element:   Function: The heating element generates heat when an electrical current passes through it, which melts the thermoplastic material to create a seal.   Material: The heating elements are typically made from a nichrome wire (an alloy of nickel and chromium) because of its high resistance to electricity and ability to withstand high temperatures without breaking down.   Operation: In impulse sealers, the heat is only generated when the sealer is in operation (i.e., when the handle is pressed down), which means the wire is only heated for short periods. This helps prevent the wire from overheating and extends its lifespan.   Replacement: Over time, the heating element can wear out due to repeated heating and cooling cycles. It may need to be replaced to maintain the sealer's effectiveness.   Installation: Replacing the heating element typically involves removing the old one, cleaning the sealing bar, and then carefully installing the new one to ensure it is taut and properly positioned.   This component is crucial for the proper functioning of impulse sealers, widely used in packaging industries to ensure seals.
MORE
FAQs (Frequently Asked Questions) about vacuum packaging
2024/6/21
FAQs (Frequently Asked Questions) about vacuum packaging
FAQs (Frequently Asked Questions) about vacuum packaging Vacuum packaging is currently a trend, and recently, many users have purchased vacuum sealers or vacuum bags, generating a lot of questions. Here are answers to the most commonly asked questions: 1.     Which vacuum sealer is suitable for me? A: There are many vacuum sealers on the market, and it is not easy to choose a suitable vacuum sealer. I have previously written about "How to Choose a Vacuum Sealer". Those with questions can refer to it for getting more information. "How to choose a vacuum sealing machine", please check the following website address. *Nozzle type vacuum sealer: https://www.dailysealing.com/news_detail.aspx?seq=1116 *Non-nozzle type vacuum sealer: https://www.dailysealing.com/news_detail.aspx?seq=1115 *Chamber vacuum sealer: https://www.dailysealing.com/news_detail.aspx?seq=1114   2.     Why can't I use PE bags for vacuum packaging? A: Due to the density of the bag material. Even after air is removed and sealed, air can still seep back into the bag. Therefore, after packaging, if left alone for a period of time, the vacuum effect will be lost.   3.     What type of bag material is suitable for vacuum packaging? A: The most common vacuum bag materials are nylon (NY) bags and aluminum foil bags. Both of these materials can prevent air from seeping back into the bag and maintain a vacuum state inside the bag.   4.     Why can't I maintain a vacuum effect even after using vacuum bags? A: If you have confirmed that you are using vacuum bags, you can first check if the seal is defective. Some vacuum bags are too thick and require a longer sealing time, such as foldable bags (tea bags), which have four layers. If the seal is confirmed to be perfect, check if there are any holes in the vacuum bag. When vacuuming, the bag will adhere closely to the contents. If the contents have sharp edges, it is possible to puncture the bag and lose the vacuum effect.   5.     Many users who have bought vacuum sealers or vacuum bags are confused when they find that they can't remove the air from flat vacuum bags. What should they do? A: This is because they have purchased a vacuum sealer without a nozzle. The non-nozzle type vacuum sealers have to use the special vacuum bags (channel bags, embossed bags and gusset bags) to remove air, so if users use flat vacuum bags, they will find the vacuum sealer and vacuum bag can't work.     6.     If someone accidentally purchases a non-nozzle vacuum sealer (such as FOODSAVER), what types of vacuum bags can they use? A: The following types of vacuum bags can be used: (1)    Vacuum sealer embossed bags (vacuum channel sealer bags): vacuum bags with straight stripes. (2)    Fold-over bags: such as tea bags with two sides folded in to become a four-layer bag. (3)    Back-sealed bags: vacuum bags with one side flat and the other side with an additional spine. Remember to choose aluminum foil bags and nylon bags as the material for vacuum bags.   7.     What is the difference between a vacuum flat bag and a vacuum striped channel sealer bag? A: A vacuum flat bag is like a regular plastic bag with both sides being flat are smooth, but the material of a vacuum flat bag is made of nylon (NY) or aluminum foil. A vacuum channel sealer bag has one flat smooth side and the other side has straight stripes.   8.     Why can a vacuum channel sealer bag be used with a Non-nozzle vacuum sealer? A: The key is in the straight stripes of the vacuum channel bag. The structure of a Non-nozzle vacuum sealer requires a straight stripe to create a channel for the air inside the bag to be removed. If the stripes are too shallow, it may still be unable to vacuum out the air.
MORE
Why Choosing Dailysealing
Parts and material quality control
  • Heating elements are from Japan.
  • Motor, Transformers, PCB and vacuum bags are made in Taiwan.
Strict quality control
  • 100% product inspection: The inspection is included functions and appearance of sealing machines.
  • Tensile strength test to ensure the sealing line tensile strength value reaches the customer standard.
  • Electric leakage test: Puncture and insulation test.
  • Our production and inspection are all based on ISO 9001.
Professional packaging and sealing machine factory
  • Produce many kinds sealing machines and ODM/OEM products and provide custom-made services.
  • More than 30 year experiences in packaging machines industry.
  • Sell sealing machines to America, Europe, Latin America and Asia.
  • 85% products in stocks, so we can deliver the products quickly.
  • The production process is based on SOP to ensure the quality of sealing machines consistently.
Complete range of specifications of sealing machines
  • Complete range of specifications of sealing machines.
  • Many kinds of sealing machines and consumptive materials in stocks, so customers can do one-stop shopping here.
  • The customers include Biotechnology companies, Medical equipment companies, Food industry, Electronics industry, Handmade soap industry and other industry..
Custom-made sealing machine service
  • Custom-made sealing machine service
  • Designs of the special sealing machine for irregular shape sealing line, such as U-shape sealing line and L-shape sealing line.
  • Different width of sealing line could be custom-made to meet customer requirements.
After-sales service of professional sealing machine
  • Provide the professional service for repair the broken sealing machine immediately.
  • The sufficient supply of parts stock, so don’t worry about the parts replace.
  • Some parts of sealing machine are used in common specifications, so it is easy to get the parts for replace.
