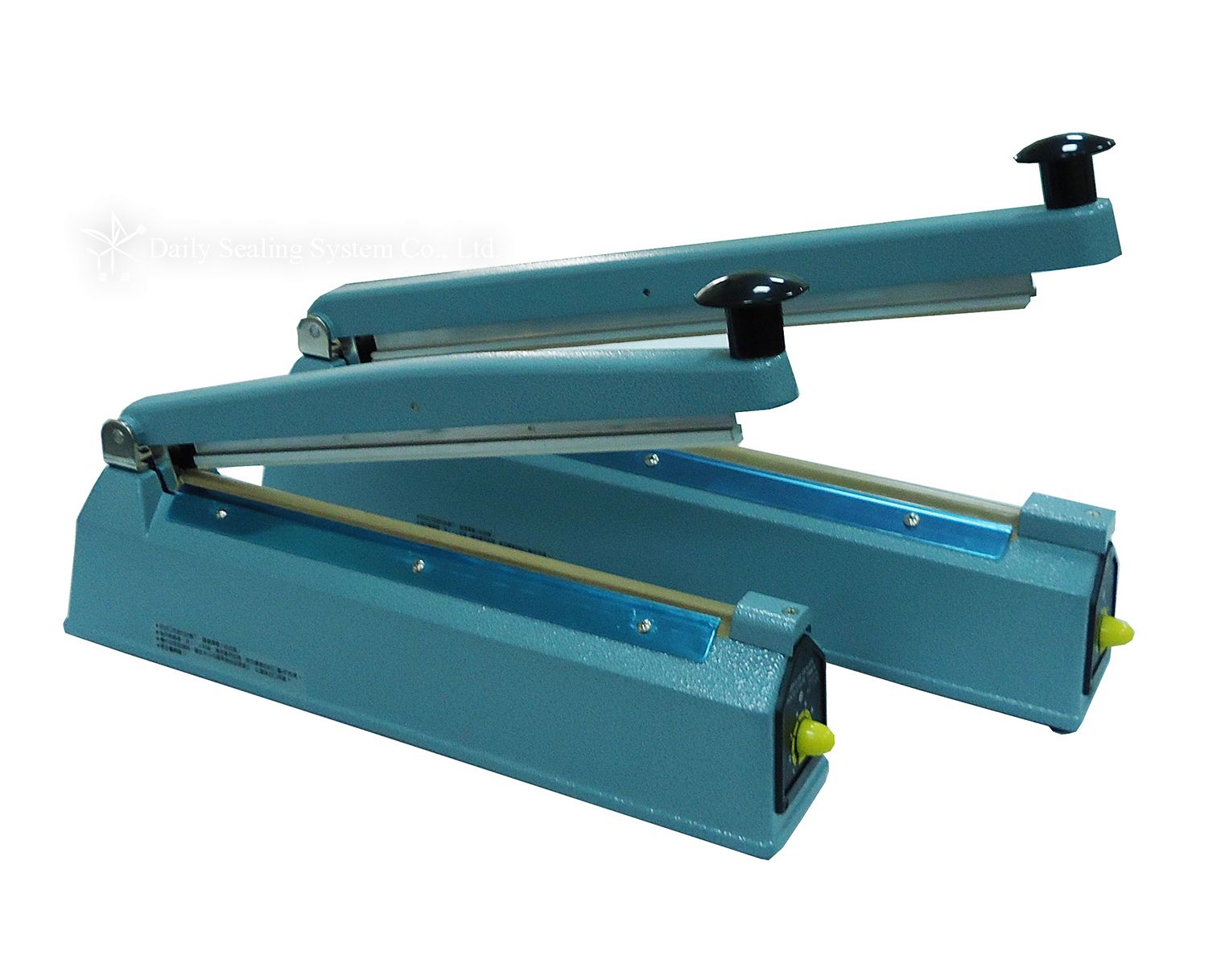

DS-300H  Hand type impulse sealer
DS-300H  Hand type impulse sealer
DS-300H
30cm Hand type impulse sealer

Sealing length: 30cm.

Suitable material for kinds of plastic bags (PE, PP, OPP, PVC, OPF, NY), non-woven bag, thin alum. bags.

  • Detail
  • Feature
  • Video

30cm Hand type impulse sealer:

• Machine: aluminum alloy with powder coating.

• Suitable material of bag: aluminum, tinfoil, sterilization bag, vacuum nylon bag.


Specification
Model No. DS-300H
Sealing type Impulse Heat
Type
Voltage/Ampere 110V, 220V
Power
Vacuum capacity
Max.sealing Max:300.0 x 2.0 mm
Vacuum time
Sealing time
Cooling time
Machine weight 3.30 kgs
Machine size 430 x 80 x 255 mm
Vacuum flow
Pump capacity
Pump type
Chamber size
Sealing width 2mm
Sealing and conveyor speed
Bag total thickness
Bag size
Sealing Temperate
Conveyor width
Conveyor height adjusting range
Conveyor loading weight
Machine size
Packing
Warm up time
Heating
Temperature
Adjusting height of working table
Width of ribbon
Size of letter
Number of letters
Printing area
Size of metal bar
Quantity of knives
Length of knives
Max. consumption electric power
Oscillation frequency
Max. welding
Film position
Size of heating board
Max. size of film
Inner core
Packing size
Working table size
PS2
PS3
Certification
Machine material
Suitable material of bag
Suitable for packing products
Spare parts
Warranty
Origin

30cm Hand type impulse sealer:



You May Also Like
News
Hand Type Sealer
2022/12/15
Hand Type Sealer
Hand type sealer is the easiest sealer for users. Hand type sealer is small size that can save space. Portable sealer is suitable for large and heavy package.   ※ Hand type sealer : ➤For different operating type : - Hand type sealer: table type. Save space. Press the hand lever and hand type sealer start to seal. Easy operating. - Hand press sealer: table type. Pull the lever down to start sealing. It can save effort. 25cm sealing line is suitable for tea bags or coffee bag packing. - Portable sealer is suitable for wide working space. Portable sealer is also suitable for large and heavy articles, such us pallet package.   ➤For different material of package bags : - Impulse hand type sealer/ portable sealer: It is suitable for PE, PP, PET material, and aluminum bags and medical bags. - Constant heat hand type sealer / portable sealer: It is suitable for aluminum bags, vacuum bags and medical bags.   More details: Click here
MORE
What are the applications of vacuum bag packaging?
2023/9/5
What are the applications of vacuum bag packaging?
Vacuum bags have a wide range of applications, especially when used in conjunction with a vacuum sealer machine. Here are some common applications of vacuum bags:   Food Storage and Preservation: One of the most common uses of vacuum bags is for storing and preserving food items. Vacuum sealing removes air from the bag, slowing down the oxidation process and inhibiting the growth of bacteria and molds. This helps keep food fresh for longer periods, whether it's raw meats, vegetables, fruits, or pre-cooked meals. Vacuum-sealed bags are also popular for storing leftovers and meal prep.   Sous Vide Cooking: Vacuum bags are essential for sous vide cooking, a cooking method where food is placed in a vacuum-sealed bag and cooked in a precisely controlled water bath at a consistent temperature. The vacuum-sealed bags ensure that the food is evenly cooked and retains its natural flavors and juices.   Marinating: Vacuum bags can be used for marinating meats and other food items. By removing the air from the bag, the marinade is more effectively absorbed into the food, resulting in enhanced flavors.   Long-term Freezing: Vacuum-sealed bags are excellent for freezing food items. The absence of air prevents freezer burn, maintaining the quality and taste of the food even after prolonged storage.   Travel and Outdoor Activities: Vacuum bags can be used to pack clothes and other travel essentials, compressing them to save space in luggage. They are also used for storing items during camping or hiking trips to protect them from moisture and keep them organized.   Document and Jewelry Storage: Vacuum bags are useful for protecting important documents, photographs, and valuable items like jewelry from dust, moisture, and other elements that could cause damage.   Organizing Household Items: Vacuum bags can be used to store seasonal clothing, blankets, and pillows, reducing their volume for easy storage when not in use.   Emergency Preparedness: Vacuum bags can be used for creating emergency kits, preserving food supplies, and organizing essential items for disaster preparedness.   Industrial and Commercial Packaging: Vacuum bags are used in various industries for packaging sensitive or perishable products, ensuring they stay fresh and intact during shipping and storage.   It's essential to use vacuum bags specifically designed for vacuum sealers to ensure proper functioning and safety. The versatility and benefits of vacuum bags make them a practical choice for various storage and preservation needs in both household and commercial settings.
MORE
Q&A How to make the sealing line of the impulse sealer even and beautiful?
2024/7/5
Q&A How to make the sealing line of the impulse sealer even and beautiful?
Q&A How to make the sealing line of the impulse sealer even and beautiful?   Q: Users often want to know why the sealing line is crooked and thin, rather than the flat and complete 2mm or 5mm wide sealing line tested by the manufacturer. A: The key point is cooling time. For impulse sealers, whether hand type or foot-operated type, both the sealing and cooling time are manually controlled. In order to shorten the package time, many users will ignore the cooling time directly. As soon as the heating time is up and the heating light goes off, they release the handle or foot pedal. This will result in uneven sealing lines.   Q: How long does the cooling time need to be? A: It is recommended to refer to the sealing time. If the heating time is longer, the cooling time should be increased accordingly, but not necessarily in a proportional manner. It still needs to be tested. Based on the experience, if using regular bags and the sealing time is not set for a long time, it is recommended that customers press for an additional 1 second after the heating light goes off (the editor usually counts to 3 in their mind) before releasing the handle or foot pedal.   Q: If I don't care about the appearance of the sealing line, can I ignore the cooling time? A: It is still recommended to have some cooling time. A complete sealing line is not only visually appealing to customers, but the most important, it ensures the bag is securely sealed. The impulse sealer uses heat to stick the bag mouth and seal it tightly, and then cools the sealing line by pressing the bag. This is how the sealing line can be both firm and smooth. Without cooling time to cool the sealing line, the sealing line of the bag mouth may be thin and easily melt and break, which could lead to bag rupture and increase the workload instead.
MORE
Why Choosing Dailysealing
Parts and material quality control
  • Heating elements are from Japan.
  • Motor, Transformers, PCB and vacuum bags are made in Taiwan.
Strict quality control
  • 100% product inspection: The inspection is included functions and appearance of sealing machines.
  • Tensile strength test to ensure the sealing line tensile strength value reaches the customer standard.
  • Electric leakage test: Puncture and insulation test.
  • Our production and inspection are all based on ISO 9001.
Professional packaging and sealing machine factory
  • Produce many kinds sealing machines and ODM/OEM products and provide custom-made services.
  • More than 30 year experiences in packaging machines industry.
  • Sell sealing machines to America, Europe, Latin America and Asia.
  • 85% products in stocks, so we can deliver the products quickly.
  • The production process is based on SOP to ensure the quality of sealing machines consistently.
Complete range of specifications of sealing machines
  • Complete range of specifications of sealing machines.
  • Many kinds of sealing machines and consumptive materials in stocks, so customers can do one-stop shopping here.
  • The customers include Biotechnology companies, Medical equipment companies, Food industry, Electronics industry, Handmade soap industry and other industry..
Custom-made sealing machine service
  • Custom-made sealing machine service
  • Designs of the special sealing machine for irregular shape sealing line, such as U-shape sealing line and L-shape sealing line.
  • Different width of sealing line could be custom-made to meet customer requirements.
After-sales service of professional sealing machine
  • Provide the professional service for repair the broken sealing machine immediately.
  • The sufficient supply of parts stock, so don’t worry about the parts replace.
  • Some parts of sealing machine are used in common specifications, so it is easy to get the parts for replace.
