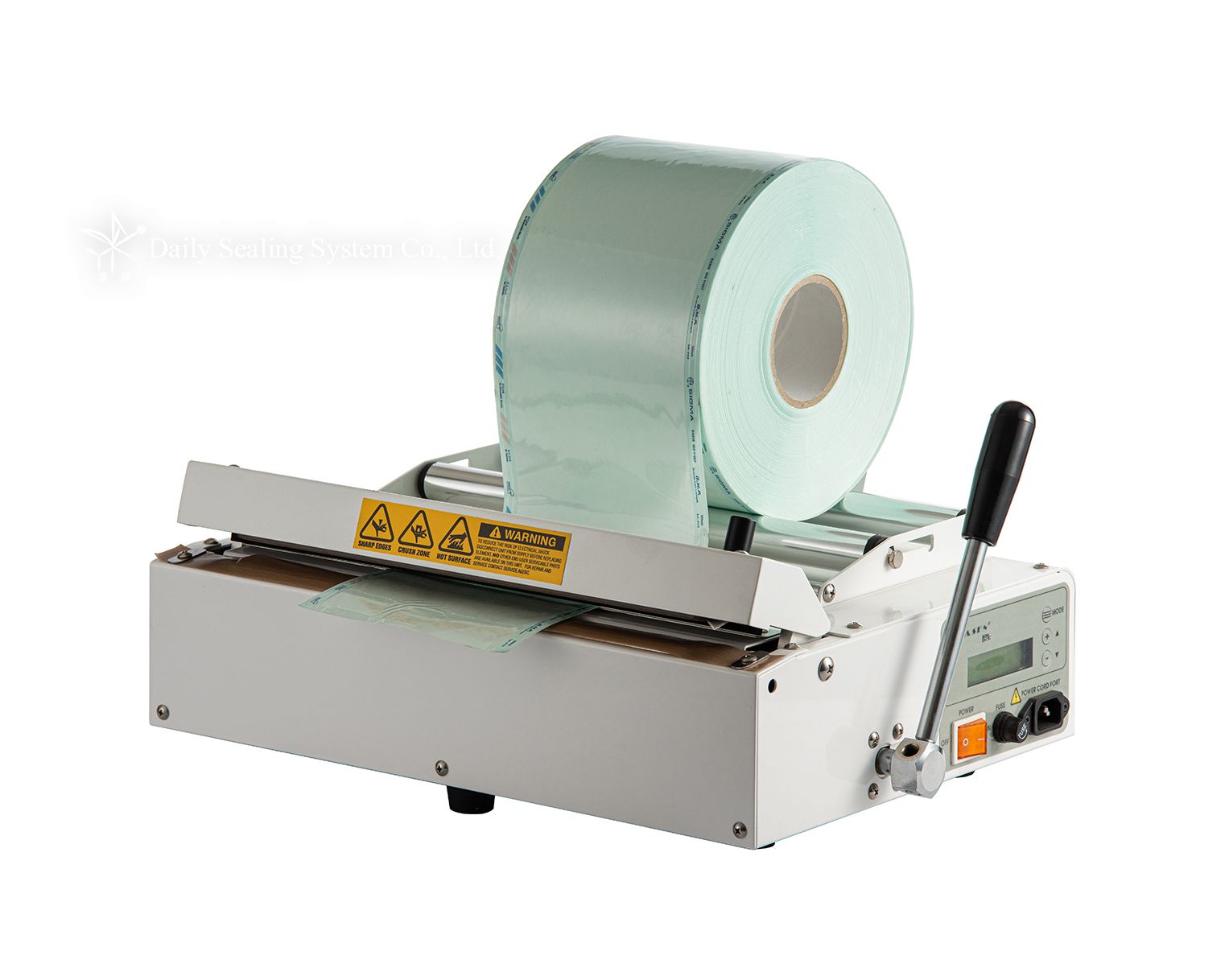

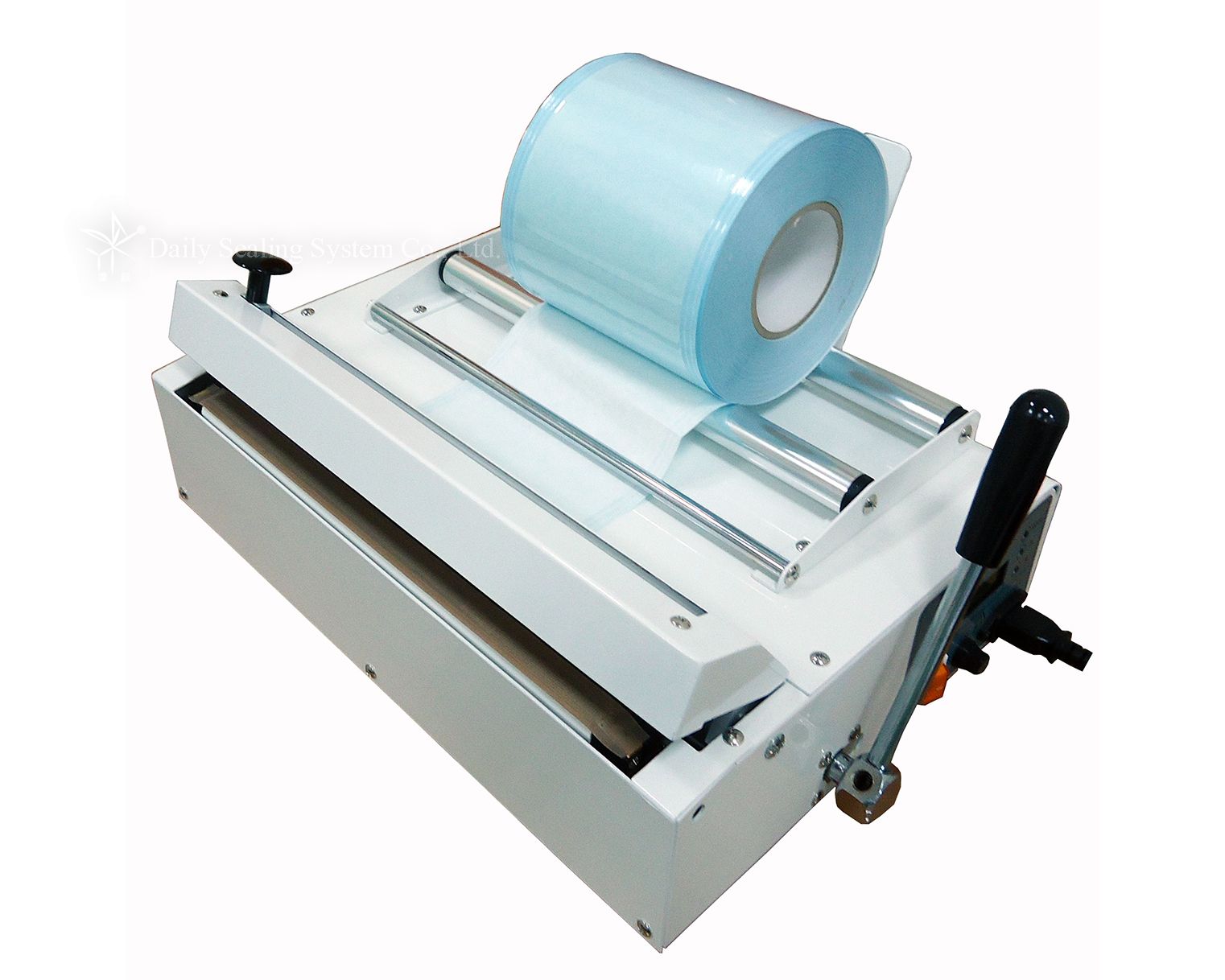

D-3010HCA
Impulse medical pouch sealer

Sealing length: 33cm.

Digital display control.

Sealing and manual cut.

Suitable for medical roll bags or other plastic roll bags.

  • Detail
  • Feature

Impulse medical pouch sealer:

• Sealing machine of antiseptic bags made in Taiwan.

• Machine made of aluminum alloy material, suitable for sterilization pouches sealing, keeps hygiene and safety

• Electronic circuit control, high quality of steady seals,which gives consistent and trim result every time

• Sealing time and cooling time can be adjusted independently as well as the counting device,
  which can count the sealed times automatically. It is clear to know how many pouches were finished.

• Offering complete cutting device and roll dispenser of antiseptic pouches to format and cut off the bags easily.
  The machine measurement is small that can save the space of transportation.

• The buzzer sound comes from inside installed buzzer to remind user when sealing is finished.

• This compact machine is much suitable for medical using purpose such as dentist, veterinary surgeries or laboratories.

• Available for medical sterilization roll bag.

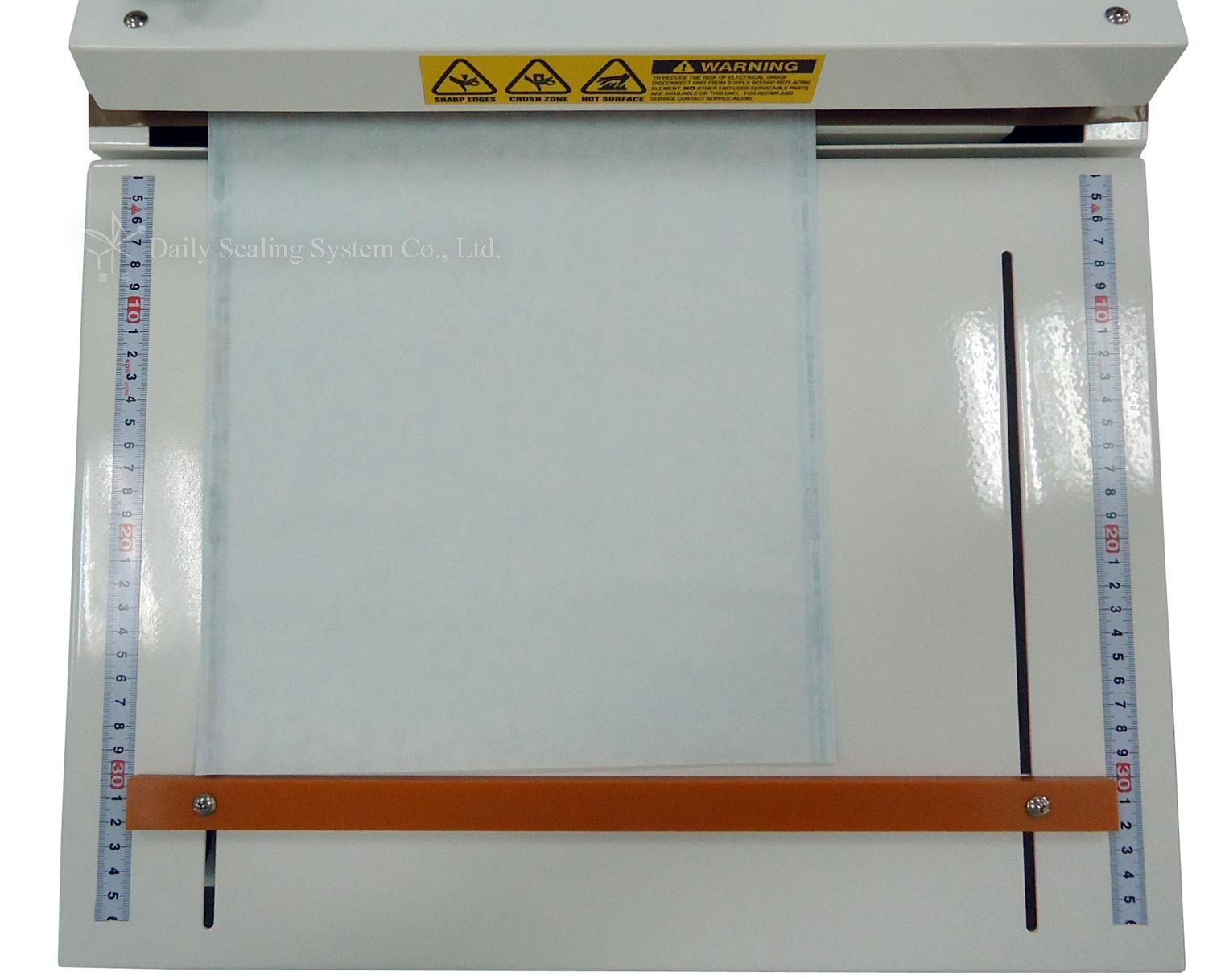

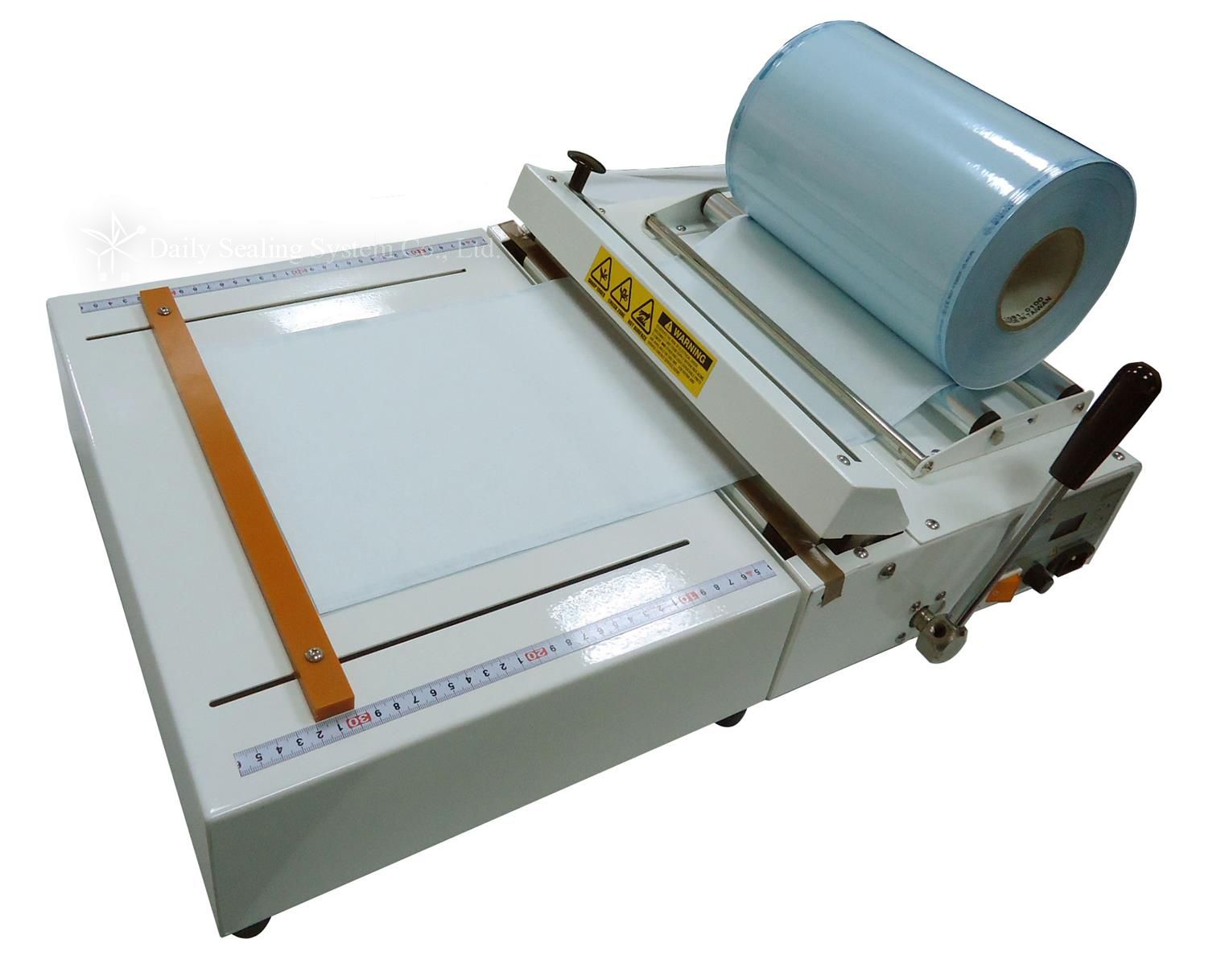

• Options: Attach worktable which could measure the length of roll bag for making pouch bag.
  (Size of length: 300mm, 400mm, 500mm)




Specification
Model No. D-3010HCA
Sealing type Impulse Heat
Type
Voltage/Ampere 110V / 6.9A, 220V / 3.3A
Power 760W(110V) , 730W(220V)
Vacuum capacity
Max.sealing 330.0 x 10.0 mm
Vacuum time
Sealing time 0.0–6.0  sec.
Cooling time 0.0–9.0  sec.
Machine weight
Machine size
Vacuum flow
Pump capacity
Pump type
Chamber size
Sealing width
Sealing and conveyor speed
Bag total thickness
Bag size
Sealing Temperate
Conveyor width
Conveyor height adjusting range
Conveyor loading weight
Machine size
Packing
Warm up time
Heating
Temperature
Adjusting height of working table
Width of ribbon
Size of letter
Number of letters
Printing area
Size of metal bar
Quantity of knives
Length of knives
Max. consumption electric power
Oscillation frequency
Max. welding
Film position
Size of heating board
Max. size of film
Inner core
Packing size
Working table size
PS2
PS3
Certification
Machine material
Suitable material of bag
Suitable for packing products
Spare parts
Warranty
Origin
