Made in Taiwan.
Operated mode: sensor control and foot pedal switch control.
3 printing lines and can put 13 letters per printing line.
Made in Taiwan.
Operated mode: sensor control and foot pedal switch control.
3 printing lines and can put 13 letters per printing line.

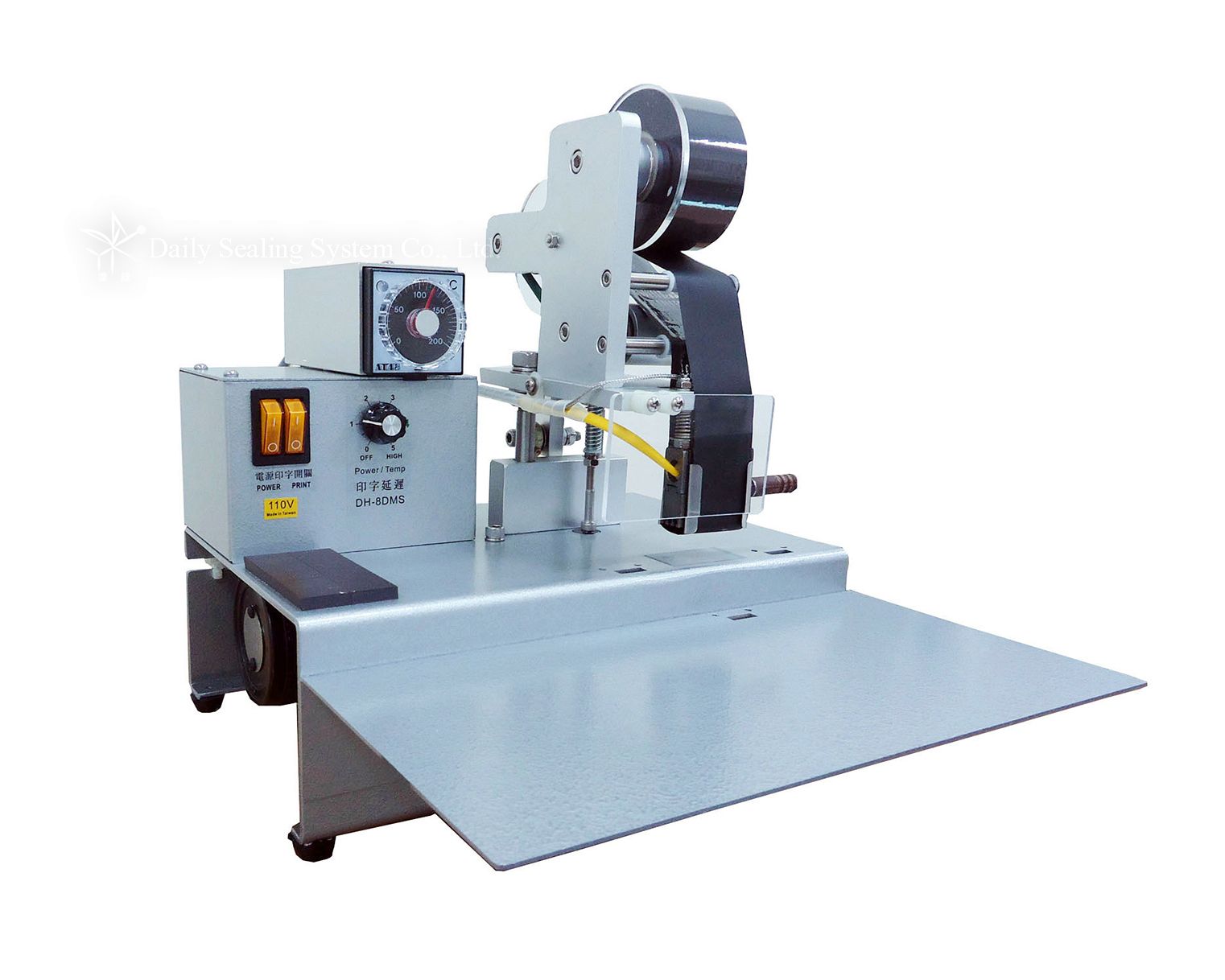

Auto Type Date Coding Machine:
• Made in Taiwan.
• Equipped with an infrared rays sensor for coding automatically; an optional foot switch control could be substituted.
• Printing speed depends on user’s working control that can be 100 times per minute quickest.
• Wording unit of patent design, which can be set in or out easily, and change numbers without tools, just pull the stopper of black rubber out, option of letter setting, changeable of printing direction.
• Easy to change color foil film without tools.
• Using endurable and not easy to discolor foil film; special usage of frozen foil film is also provided.
• Printing letters including MFG、LOT、EXP…etc.
• Option of printing lines from 1 to 3.
• Special word, letter or font could be custom made, such as company name.
• Available for cartons (before folding) and plastic bag: made of PE, OPP, PVC, aluminum, tinfoil…etc
(1) Added: pneumatic control (air control)
(2) Or added: electromagnet control (auto control).
• One set unit including:
(1) Dating imprinter x 1 set
(2) Painting letter set x 1 box: 0~9, 0. ~ 9. , MFG, EXP, LOT.
(3) Black ribbon foil x 1 roll
(4) Manual operation x 1 set
Model No. | DP-8MS |
---|---|
Voltage/Ampere | 110V, 220V |
Machine weight | 7.00 kgs |
Machine size | 360 x 310 x 260 mm |
Width of ribbon | 35mm |
Size of letter | Standard: 4TC:4.0 x 2.5 mm 3TC:3.0 x 2.0 mm 2TC:2.5 x 2.0 mm |
Number of letters | 3 lines: 4TC:13 letters per line. 3TC:14 letters per line. 2TC:14 letters per line. |
Printing area | 12 x 33 mm( H x W ) |
