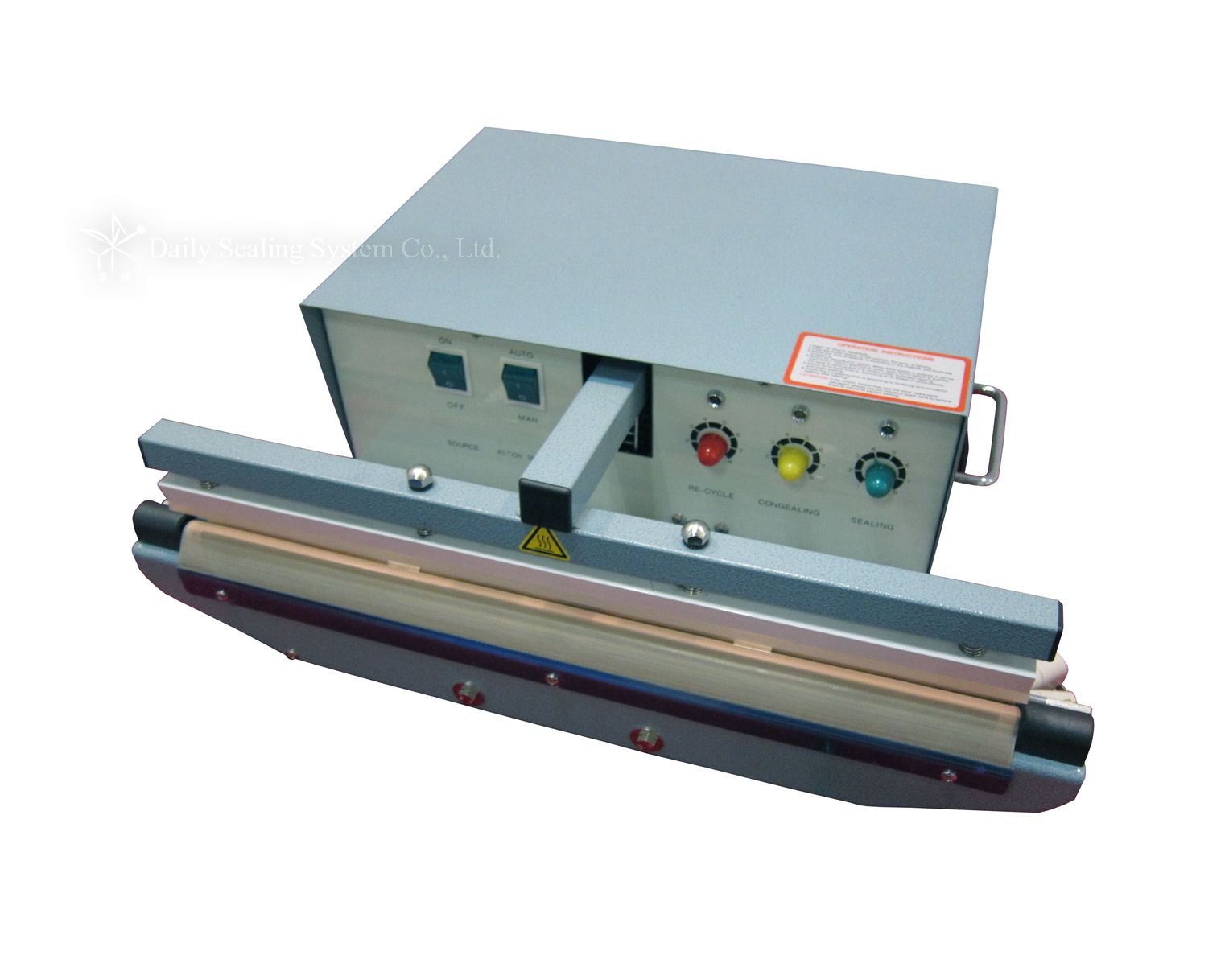

DS-600A Automatic Impulse Sealer
DS-600A Automatic Impulse Sealer
DS-600A
60cm Automatic Impulse Sealer

Sealing length: 60cm.

Operate mode: time controlled or foot pedal switch controlled.

Suitable for PP, PE, PVC, NY etc. material bags.

  • Detail
  • Feature

Automatic Impulse Sealer:

• Automatic Sealer is designed for the continuous sealing of polyethylene and polypropylene materials.

• Can be selected auto or manual function.

    (1) Comes with a foot switch for manual operation.

    (2) Controlled by a plug-in circuit board that provides the uniform by an electromagnet.

         Sealing is maintained automatically after 3 Timers are set.

• Suitable materials: PE, PP, OPP, PVC, POF...




Specification
Model No. DS-600A
Sealing type Impulse Heat
Type
Voltage/Ampere 110V, 220V
Power 800W
Vacuum capacity
Max.sealing Max:600.0 x 2.7 mm or 600.0 x 5.0 mm
Vacuum time
Sealing time 0.0–2.5 sec.
Cooling time
Machine weight 22.00 kgs
Machine size 680 x 360 x 200 mm
Vacuum flow
Pump capacity
Pump type
Chamber size
Sealing width
Sealing and conveyor speed
Bag total thickness
Bag size
Sealing Temperate
Conveyor width
Conveyor height adjusting range
Conveyor loading weight
Machine size
Packing
Warm up time
Heating
Temperature
Adjusting height of working table
Width of ribbon
Size of letter
Number of letters
Printing area
Size of metal bar
Quantity of knives
Length of knives
Max. consumption electric power
Oscillation frequency
Max. welding
Film position
Size of heating board
Max. size of film
Inner core
Packing size
Working table size
PS2
PS3
Certification
Machine material
Suitable material of bag
Suitable for packing products
Spare parts
Warranty
Origin
