DPC-MS101
Medical bag continuous sealing machine

For medical bags sealing.

Can retrofit date coder.

  • Detail
  • Feature

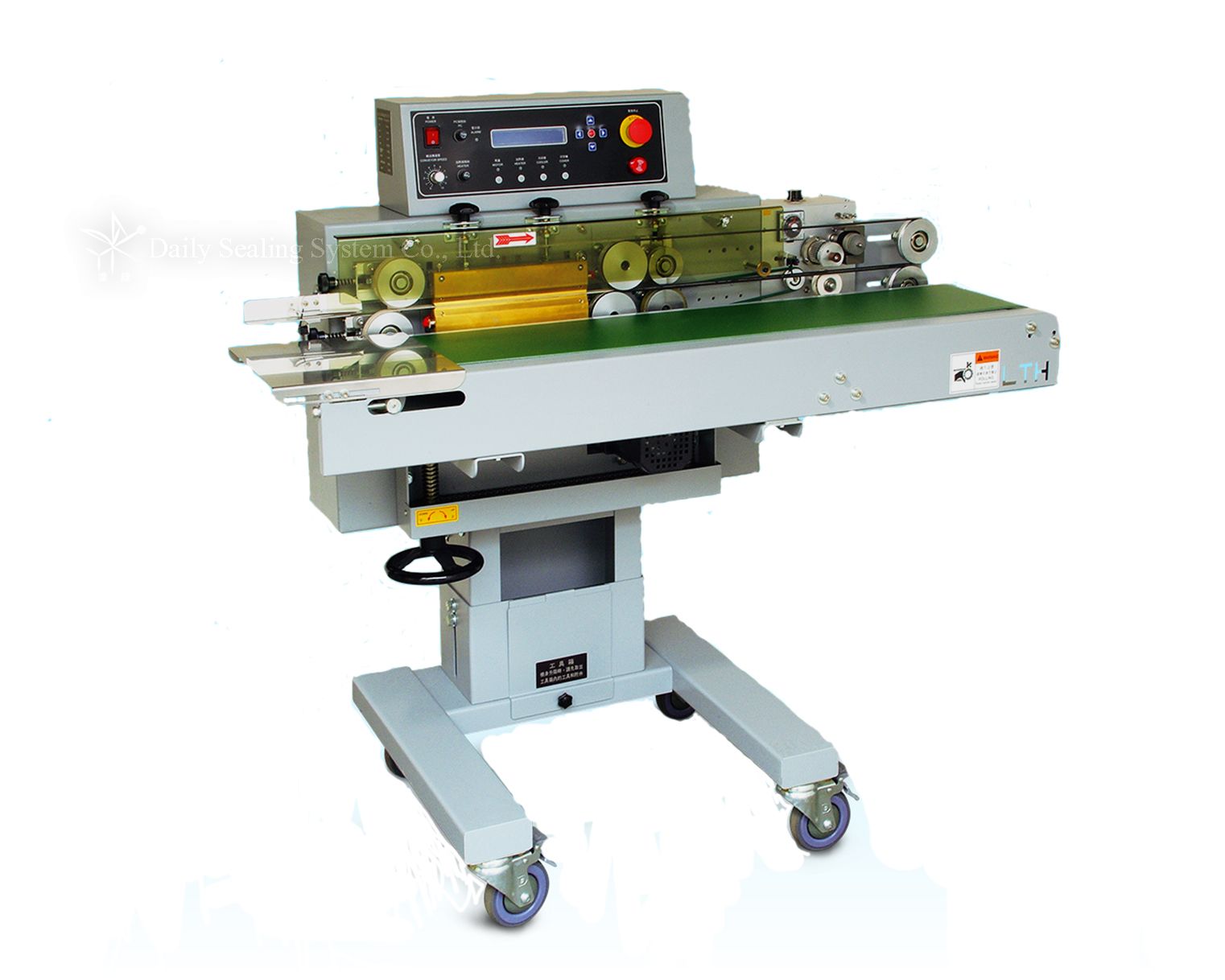

DPC-MS101 Medical bag continuous sealing machine


•
Electronic circuit control: the screen can show the sealing temperature, sealing speed and count times.


• Installed buzzer and indicator light:

  (1) When reach the target of packing quantity, the buzzer will sound and the indicator light will

       twinkle to remain user.

  (2) If the temperature is out of control, the machine will make noisy and indicator light will

       twinkle.


• The length from bag seal to bag mouth: max. length: 35mm.


• The sealing bar could be tilted down 0 - 15 degrees.


• Installed counter inside.


• Suitable material: Medical bags, sterilization bag.


• Accessories:

  (1) Tools*10pcs (2) Fuse*2pcs (3) Operating instruction (4) Teflon ring * 2pcs (5) V-belt * 2pc


• Medical bag continuous sealing machine Available for medical sterilization roll bag.


• Additional options:

  (1)Date coding machine

  (2) Can be stainless steel housing.


Specification
Model No. DPC-MS101
Sealing type
Type
Voltage/Ampere AC200V / 220V / 240V ,single phase,50/60Hz
Power Power:1300 W。Heating power:600W × 2 pcs (2 sets of temperature display)
Vacuum capacity
Max.sealing
Vacuum time
Sealing time
Cooling time
Machine weight 120KGS / 180KGS
Machine size 1350* 550* 1010 mm
Vacuum flow
Pump capacity
Pump type
Chamber size
Sealing width 10 mm
Sealing and conveyor speed 0~10 m/minute (adjustable)
Bag total thickness 0.06 ~ 0.5 mm (double-layer thickness)
Bag size Within Length:300mm*Width:300mm
Sealing Temperate 50℃~300℃
Conveyor width 200 mm
Conveyor height adjusting range 90 mm
Conveyor loading weight 5 KGS
Machine size 1350* 550* 1010 mm
Packing 1430* 650* 1130 mm
Warm up time
Heating
Temperature
Adjusting height of working table
Width of ribbon
Size of letter
Number of letters
Printing area
Size of metal bar
Quantity of knives
Length of knives
Max. consumption electric power
Oscillation frequency
Max. welding
Film position
Size of heating board
Max. size of film
Inner core
Packing size
Working table size
PS2 Conveying direction:From left to right (can be from right to left for custom-made)
PS3 Packing function:Medical bag Sealing
Certification
Machine material
Suitable material of bag
Suitable for packing products
Spare parts
Warranty
Origin
